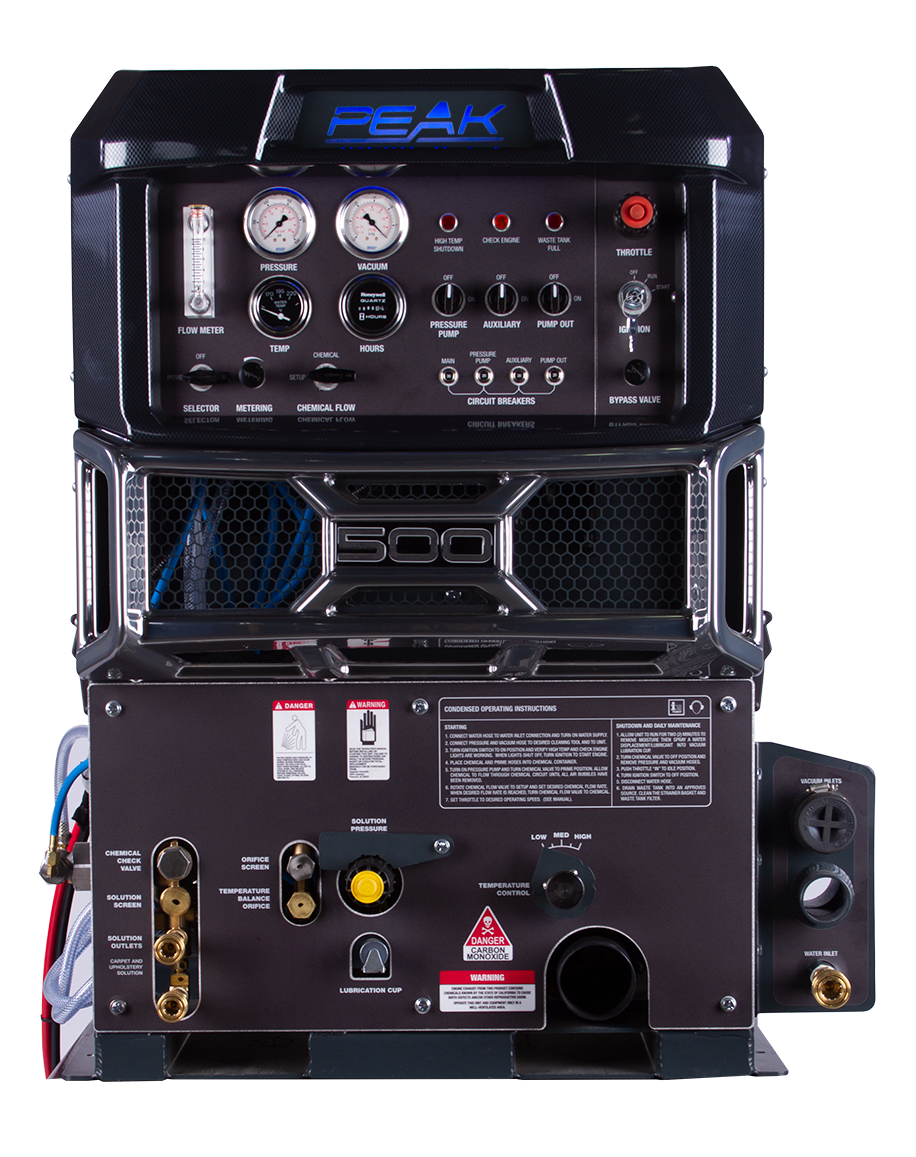

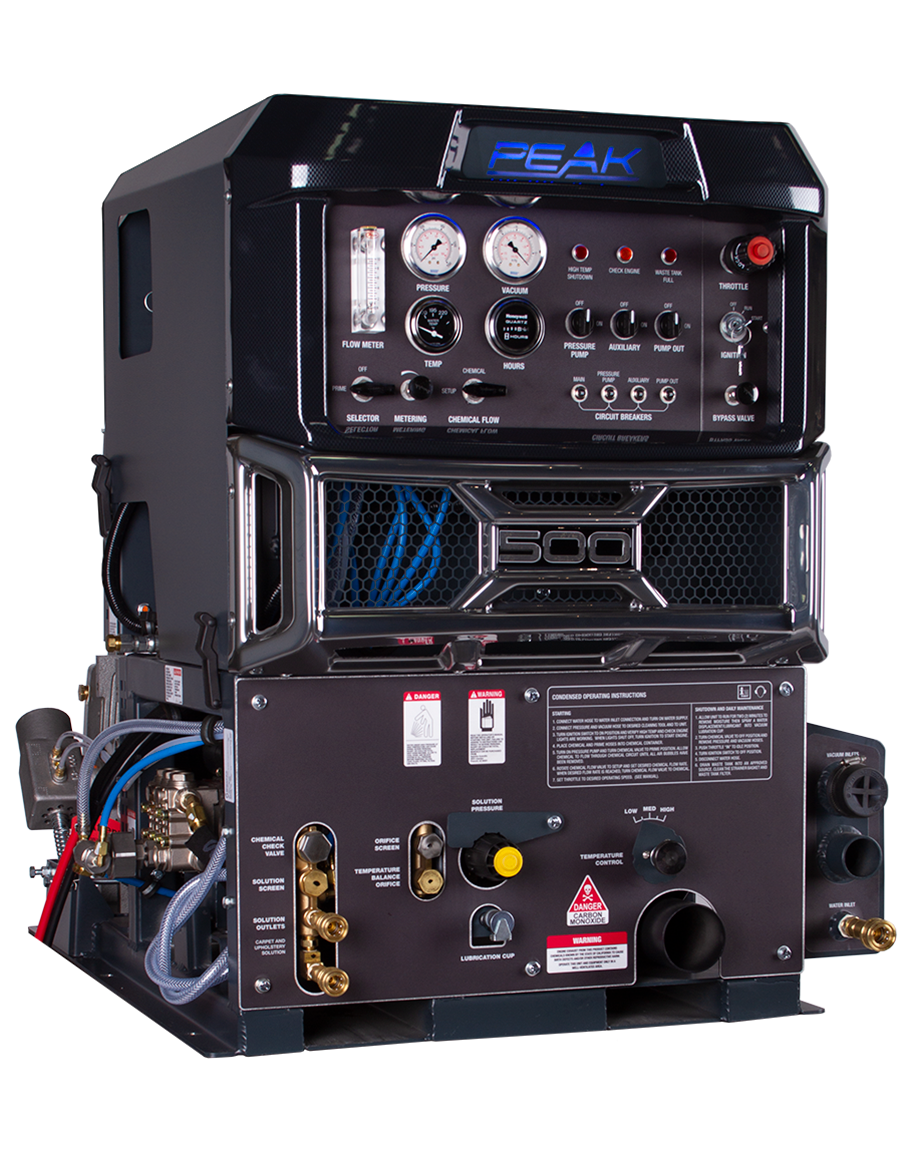

Peak 500

• Product Details

  Value-priced and 50-state CARB-compliant, this liquid-cooled unit delivers enough heat and vacuum to operate a six-jet wand flat out. Heats fast but sips fuel at only 1 gallon per hour. Lowest cost CARB-compliant machine in its class! Cerakote treatment on exhaust components reduces truckmount and van interior temps.

• Specifications
  • Power plant: Kawasaki FD851D-DFI liquid-cooled 31 HP engine with digital fuel injection and 47.1 ft-lbs of torque operating at 3000 RPM
  • Vacuum pump: Gardner Denver TriFlow 406 positive displacement blower with vacuum to 13 in. Hg and flows up to 406 CFM
  • Solution pump: General HTXS1813S water pump producing 3.5 GPM and up to 1500 PSI at 1450 RPM
  • Heating system: Stainless steel/copper finned tube coil design with manual adjustment control. Supplemented with a plate engine coolant heat exchanger
  • Frame construction: Powder-coated aluminum box tubing
  • Dimensions:
    • Console (W × H × D): 35 × 40 × 47 in
    • 89 × 101.6 × 119.4 cm
  • Legend Rewards: 12,000

  View Full Specs
