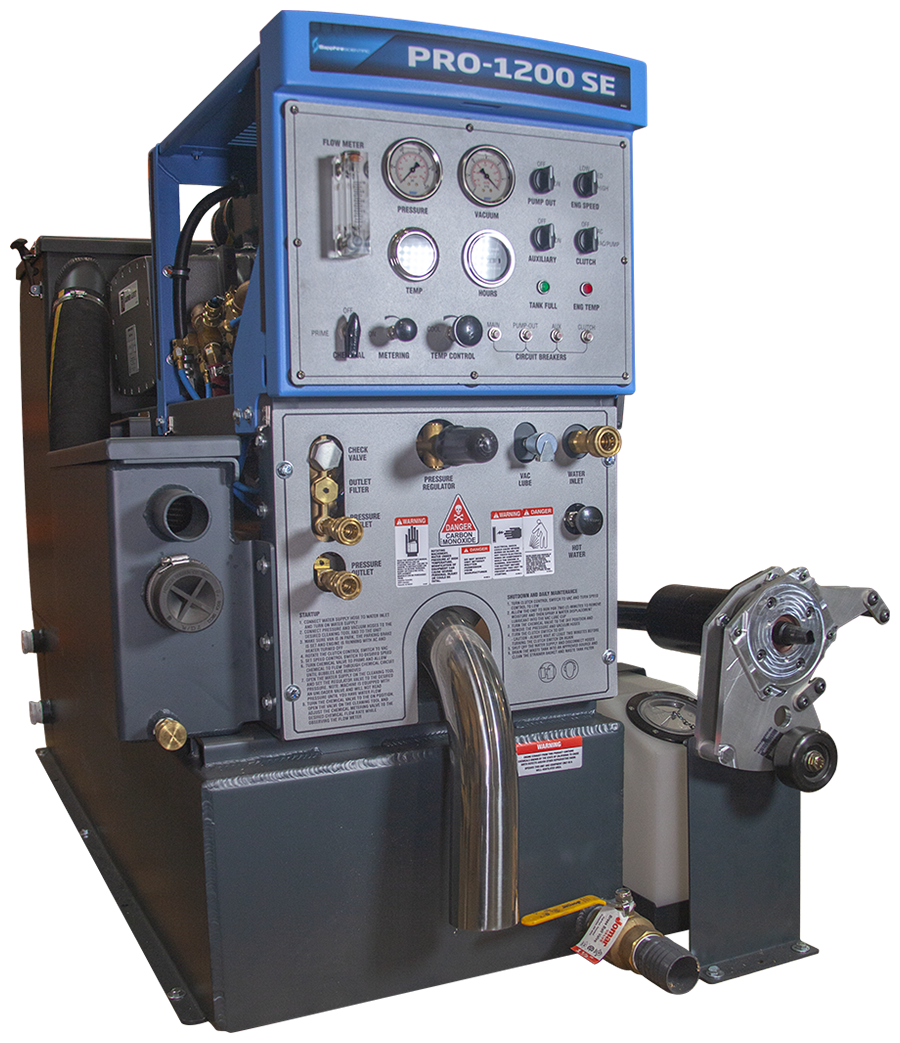

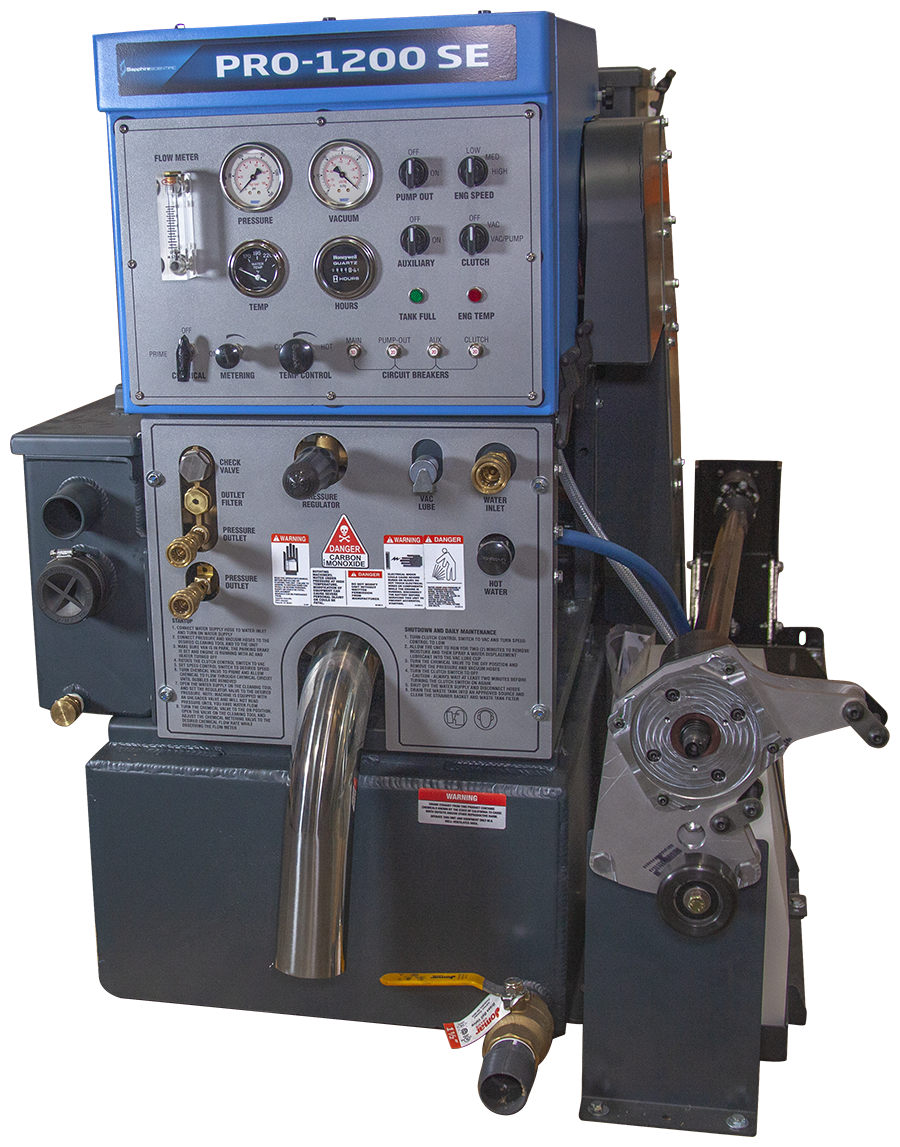

Pro-1200 SE Direct-Drive

• Product Details

  Simply the best direct-drive unit on the market today. Features high heat, fuel-efficient operation, a compact footprint, state-of-the-art components, and ease of installation, the Pro-1200 SE sets the standard for reliable vehicle-powered truckmounts.

• Specifications
  • Vacuum pump: Gardner Denver HeliFlow^® Twisted Tri-Lobe HF408 helical gear drive positive displacement blower. Vacuum to 13 in. Hg and flows up to 455 CFM @ 3450 RPM
  • Max. temperature:
    • Up to 240° F
    • 116° C depending on conditions
  • Solution pump: General Pump HTS2016S with high temp seals, electric clutch and fully adjustable pressure settings up to 1200 PSI and 5 GPM @ 1585 RPM
  • Submount waste tank (standard): 100 gal. (379 L) 0.1875 in. marine-grade aluminum. 84 gal. (318 L) at shutoff.
  • Vehicle engine RPM settings:
    • High: 1400
    • Medium: 1200
    • Low: 1000
  • Fuel consumption (typical): 12 gal. per hour
  • Frame construction: 1 × 2 in. powder-coated aluminum box tubing
  • Dimensions (W × H × D):
    • 21.5 × 41 × 62 in.
    • 55 × 105 × 157 cm
  • Legend Rewards: 12,000 points

  View Full Specs
